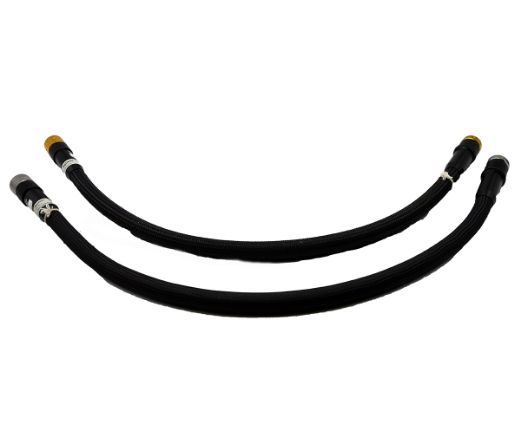

Keysight Technologies 85133F
Cable Set 2.4mm
The Keysight (formerly Agilent) 85133F is a flexible test port cable set 2.4 mm, with a length of 63 cm (25 in). The 85133F's cable frequency range is DC to 50 GHz with a return loss of greater than or equal to 15 dB. The phase stability of semi-rigid/flexible cables in the Keysight 85133F is indicated with a 90 degree bend using a 2.5 inch radius.
Keysight 85133F - Key Features and Specifications:
- Set of 2.4 mm female to PSC-2.4 mm female connector and a 2.4 mm female to 2.4 mm male connector
- Insertion loss for the test port connector: 0.450 0.013F 0.300vF, (where f is frequency in GHz)
- Insertion loss for device connector: 3.22 dB at maximum frequency
- Stability: less than 0.08 dB and phase is 0.08 degrees*f 0.5 degrees (where f is frequency measured in GHz)
Get the Keysight 85133F for lease or rent from TRS-RenTelco with 365-day customer support.
The latest test equipment - Our customers get the latest and best devices in the market. We acquire newly introduced equipment from the best manufacturers out there. If you are looking for a new model, we probably have it in stock, ready to be shipped.
Calibrated equipment - Our experienced team of metrologists and technicians calibrate each product like the Keysight 85133F to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.
Fast delivery options - We are located on the grounds of DFW Airport with a FedEx pickup time of 10:00 PM each day. This lets us take orders as late as 8:00 PM and have the equipment delivered the following morning.
Contact us and request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable NMD 2.4 mm(f) - 2.4 mm(m)
Qty: 1 -
Cable NMD 2.4 mm(f) - 2.4 mm(f)
Qty: 1 -
Manual Operating and Service
Qty: 1
