Anritsu S820E-740
Microwave Site Master 1 MHz to 40 GHz Cable and Antenna Analyzer, K(m)

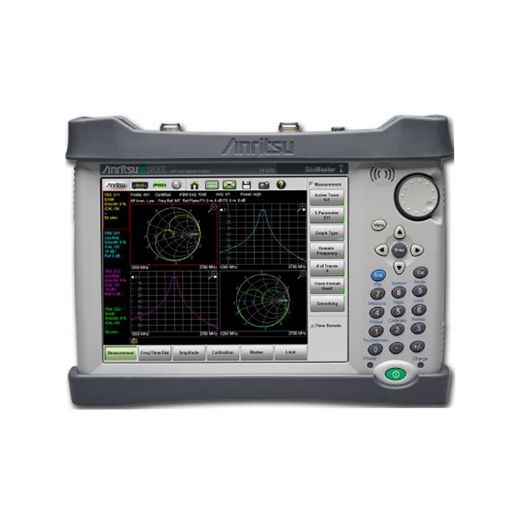

Anritsu is proud to introduce the advanced Site Master S820E-740 Handheld Cable & Antenna Analyzer. With microwave frequency coverage up to 40 GHz, the new S820E-740 completely redefines the standards for portable handheld analyzers, setting another new industry benchmark for performance and accuracy.
The new S820E-740 is the culmination of over 50 years of microwave development, utilizing the very latest technologies previously reserved only for benchtop instruments. Based on a true 4 channel receiver design, the Anritsu S820E-740 offers true VNA performance in a portable package.
Optional VNA Mode provides fully reversing S-parameter measurements anywhere, anytime. Optional Vector Voltmeter Mode (VVM) with standard A/B and B/A ratio may be used as drop-in replacement for legacy VVM products.
Anritsu S820E-740 - Features and Specifications:
- Frequency coverage up to 40 GHz
- 3-year standard warranty, lowering cost of ownership
- Advanced Mode and Classic Mode
- Line Sweep Tools for easy reporting - easyTest Tools enables standardized testing for repeatable measurements
- Certified for use in explosive atmospheres (MIL-PRF-28800F Section 4.5.6.3)
The Anritsu S820E-740 is available for rent or lease at TRS-RenTelco with 365 day customer service.
The latest test equipment - We are constantly investing in new equipment to support emerging technologies that require electronic test and measurement equipment. We are often the first to buy newly introduced products from top T&M manufacturers.
Calibrated equipment - Products like the S820E-740 are calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by expert metrologists and technicians.
Fast delivery options - We are located on the grounds of DFW Airport with a FedEx pickup time of 10:00 PM each day. This lets us take orders as late as 8:00 PM and have the equipment deliv
- Configurations
- Resources
- FAQsAI
