Anritsu WG137
Waveguide Kit, 5.85 GHz to 8.2 GHz

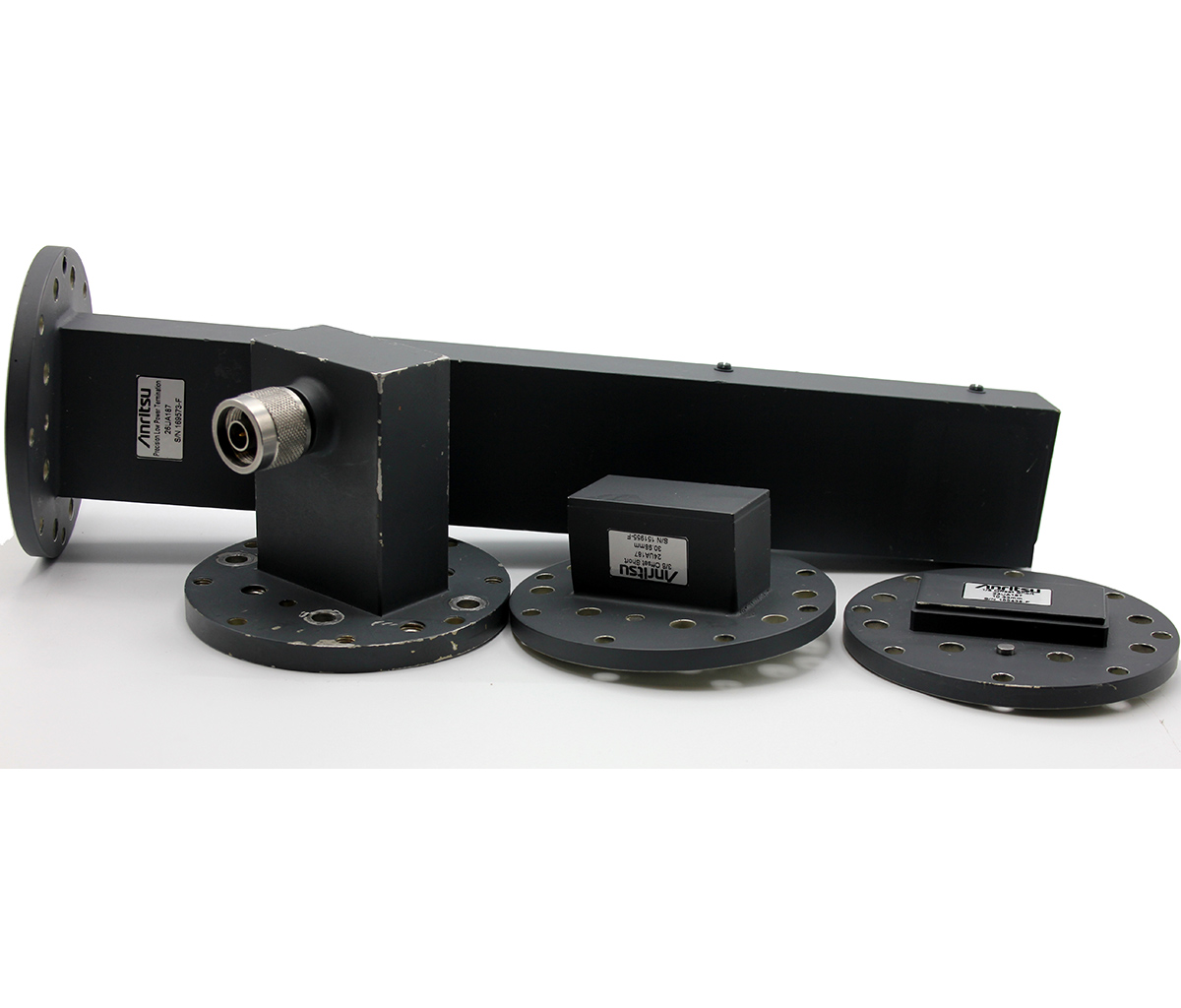

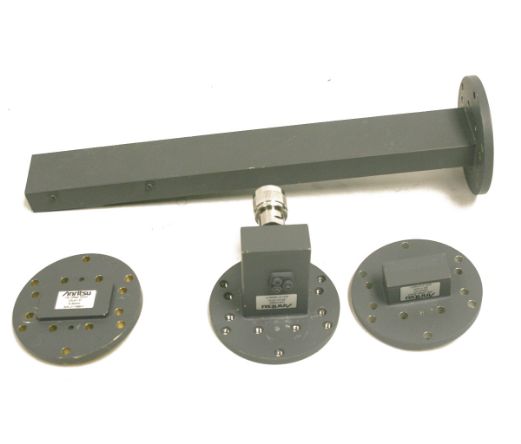

The Anritsu WG137 is a Waveguide adapter from the popular global testing components and accessories manufacturer Anritsu. The Anritsu WG137 helps provide transmissions across microwave and coaxial devices. Used in various industries that deal with terrestrial and satellite communications, the WG137 comes with a diverse frequency range that begins at 5.85 GHz and extends to 8.2 GHz. The Anritsu WG137 Waveguide adapter kit comes with four vital adapter options to ensure that all your connectivity and transmission needs are met. The Anritsu WG137 5.85 to 8.2GHz Waveguide Adapters kit includes the following:
- 23UA137 ? 1/8 offset short, 5.85 8.2GHz
- 24UA137 ? 3/8 offset short, 5.85 to 8.2Ghz
- 26UA137 ? Precision Termination, 5.85 to 8.2Ghz
- 35UA137N ? Coaxial adapter, N(m), 5.85 to 8.2Ghz
At TRS-RenTelco, we offer a variety of calibrated test equipment maintained to match industry standards. We also offer comprehensive customer support 24 hours a day, seven days a week. If you are looking to rent or lease the Anritsu WG137 Waveguide Adapter Kit, request a quote today.
- Configurations
- Resources
- FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Offset Short 1/8 in 5.85 GHz - 8.2 GHz
Qty: 1 -
Offset Short 3/8 in 5.85 GHz - 8.5 GHz
Qty: 1 -
Termination Precision 5.85 GHz - 8.2 GHz (Standard)
Qty: 1 -
Adapter Coaxial N(m)
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Anritsu Waveguide Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What are the Anritsu WG137 Waveguide Components?
The Anritsu WG137 waveguide components include offset shorts, precision loads, and waveguide-to-coaxial adapters designed for high-frequency waveguide calibration and measurements, facilitating accurate system characterizations and calibrations.
What is the purpose of the 23 Series and 24 Series Offset Shorts?
The 23 Series and 24 Series Offset Shorts are used in waveguide calibrations as substitutes for traditional coaxial SOLT (Short-Open-Load-Thru) calibrations due to the typically low reflectivity of an open waveguide standard. They are essential for SSLT (Short-Short-Load-Thru) and LRL/LRM (Line-Reflect-Line/Match) calibrations.
How do the Offset Shorts contribute to waveguide calibrations?
Offset shorts provide a known reflection point within the waveguide, which, when used in conjunction with precision loads and a through connection, allows for the accurate characterization of waveguide components and the calibration of measurement systems.
What are the 26 Series Precision Loads used for?
The 26 Series Precision Loads are banded waveguide components utilized in waveguide calibrations. They act as highly accurate terminations, providing a minimal reflection point to ensure the integrity of calibration procedures such as SSLT and LRL/LRM.
How do the 35U Series Waveguide-to-coaxial Adapters function?
The 35U Series Adapters convert standard waveguide interfaces to coaxial connections, allowing for the integration of waveguide components into systems that primarily use coaxial connections, thereby extending the versatility and applicability of waveguide systems.
What is the significance of the VSWR values listed for the Precision Loads?
The Voltage Standing Wave Ratio (VSWR) values indicate the reflection characteristics of the Precision Loads. Lower VSWR values imply better impedance matching and less reflected energy, which is critical for accurate calibrations and measurements.
How does the offset length of the Offset Shorts affect waveguide measurements?
The offset length in the Offset Shorts determines the phase shift introduced by the short within the waveguide. This phase shift is used in calibration procedures to ascertain the electrical length and properties of the waveguide components being tested.
What are the frequency ranges covered by the Anritsu WG137 waveguide components?
The components cover a wide range of frequency bands, from WR28 (26.5 GHz – 40 GHz) down to WR187 (3.95 GHz – 5.85 GHz) for offset shorts, and similar ranges for precision loads and waveguide-to-coaxial adapters, catering to various high-frequency applications.
Why are precision flanges used in some waveguide components?
Precision flanges are used to ensure a high degree of mechanical and electrical repeatability in waveguide connections. They are critical for maintaining measurement accuracy, especially in high-frequency applications where even minor discrepancies can significantly impact results.
What factors should be considered when selecting waveguide components for a specific application?
Factors include the operating frequency range, waveguide size (designated by WR numbers), the specific calibration or measurement procedure being performed, and the required accuracy and repeatability of the measurements.
