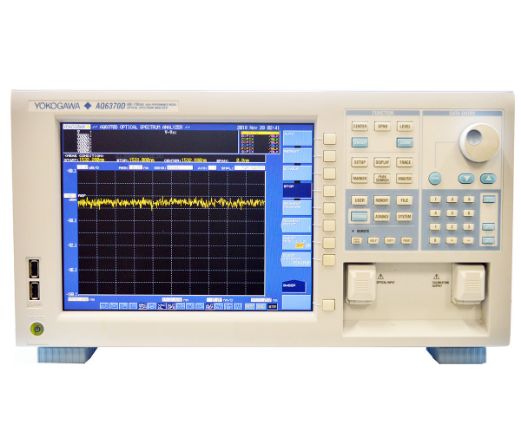

Yokogawa AQ6370D-22
Optical Spectrum Analyzer
The Yokogawa AQ6370D-22 is an optical spectrum analyzer, which is well-suited for both general purpose applications as well as telecommunications. The AQ6370D-22 has a unique free space input design, which enables testing of both DWDM single mode and VCSEL sourced multi-mode fibers in a single model.
Some of the major specifications of the Yokogawa AQ6370D-22 optical spectrum analyzer are:
- Wavelength range: 600 to 1700 nm
- Wavelength accuracy: /-0.01 nm (high-performance model)
- Wavelength resolution setting: 0.02 to 2 nm
- Level range: 20 to -90 dBm
- Close-in dynamic range: 78 dB typ. (peak /-1.0 nm, high-performance model)
The applications of the Yokogawa AQ6370D-22 include:
- Emission spectrum evaluation of optical transceivers and LD modules
- OSNR measurement of WDM transmission signals
- Optical amplifier (EDFA) measurement
Get the Yokogawa AQ6370D-22 optical spectrum analyzer from TRS-RenTelco for rent or for lease with the added benefit of our 24/7, year-long customer support. We ship the product with minimal lead time. Our experienced team of metrologists and technicians calibrate all equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote today.
- Configurations
- Resources
--, -22, -D, -L1, /FC, /RFC
See Configuration Details
-
-L1
With Calibration Source Option (Nc)
-
/FC
Optical Input Aq9447 Fc Option
-
/RFC
Calibration Output Aq9441 Fc Option
-
-D
Ul/Csa Standard Power Cord Option (Nc)
-
-22
High Performance Model Option
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Connector FC Input
Qty: 1 -
Connector FC Output
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
