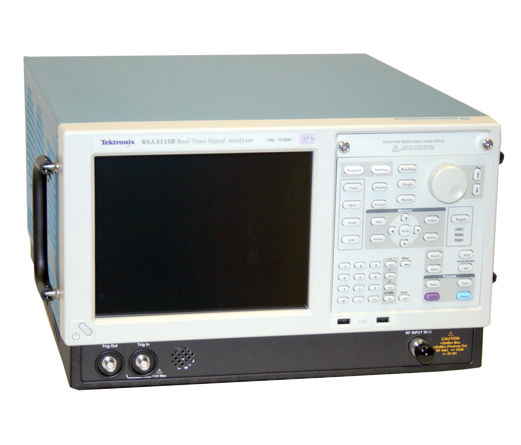

Tektronix RSA5115B
15 GHz Real Time Spectrum Analyzer, Type N (f)
The RSA5000 Series will help you to easily discover design issues. The DPX spectrum display offers an intuitive live color view of signal transients changing over time in the frequency domain, giving you immediate confidence in the stability of your design, or instantly displaying a fault when it occurs. Once a problem is discovered with DPX, the RSA5000 Series spectrum analyzers can be set to trigger on the event, capture a contiguous time record of changing RF events, and perform time-correlated analysis in all domains. You get the functionality of a high-performance spectrum analyzer, wideband vector signal analyzer, and the unique trigger-capture-analyze capability of a realtime spectrum analyzer - all in a single package.
- Configurations
- Resources
--, -009, -051, -056, -065, -300, -B16XHD, -PFR, 000, 010, 011, 012, 014, 020, 021, 022, 023, 024, 025, 026, 027, 028, 054, 066, MAP
See Configuration Details
-
011
Phase Noise / Jitter Measurements
-
009
Enhanced Real Time (Requires Sw Version 3.X Or Higher):(May Require An Export Control License)
-
010
AM/FM/PM Modulation And Audio Analysis
-
012
Settling Time Measurements (Frequency And Phase)
-
014
Noise Figure And Gain
-
020
Pulse Measurements
-
021
General Purpose Modulation Analysis
-
022
Flexible OFDM Analysis
-
023
WLAN 802.11A/B/G Measurement Application
-
024
WLAN 802.11N Measurement Application
-
025
WLAN 802.11AC Measurement Application
-
026
APCO P25 Measurement Application
-
054
Signal Classification/Survey
-
027
Bluetooth Basic LE Tx Sig Measurements
-
028
LTE Downlink RF Measurements
-
051
Internal Preamp
-
056
Removable Ssd: Incompatible With Option 59
-
065
Digital I And Q Output
-
066
Zero-Span Analog Output
-
300
High Performance Real Time
-
B16XHD
High Dynamic Range: 165 Mhz Acquisition Bandwidth
-
MAP
Mapping
-
PFR
Precision Frequency Reference
-
-009
Enhanced Real Time
-
-051
Internal Preamp
-
-056
Removable SSD
-
-065
Digital I And Q Output
-
-300
High Performance Real Time
-
-B16XHD
High Dynamic Range: 165 MHz Acquisition Bandwidth
-
-PFR
Precision Frequency Reference
-
000
Options Listed Below Are Also Available For An Additional Cost
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Adapter Planer Crown N(f)
Qty: 1 -
Cord Power
Qty: 1 -
Cover Front
Qty: 1 -
Cable 100 Ohm 1.5 m 18 Twist Pair
Qty: 2 -
Mouse Optical
Qty: 1 -
Keyboard USB
Qty: 1 -
USB Drive Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix RSA5000B Spec Sheet
