Tektronix P7520A

20 GHz TriMode Probe

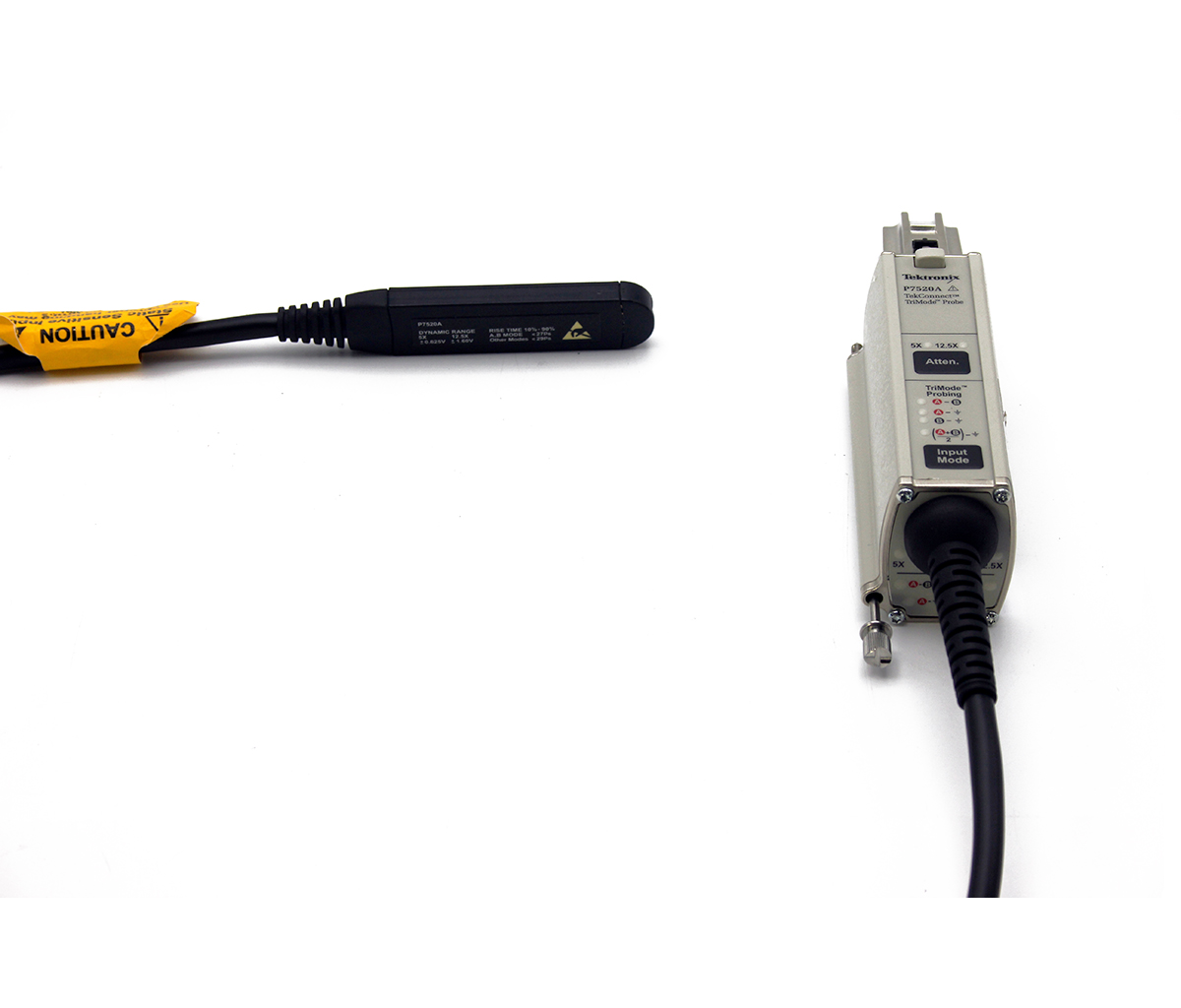

The Tektronix P7520A is a 20GHZ TriMode Differential Probe (P75PST solder tip and the newer DPO/DSA70KD scopes to achieve 25GHz). With Tektronix's proprietary TriMode technology, the one-probe setup on the P7520A makes differential, single ended, and common mode measurements with complete accuracy.

Here are the technical specifications of the P7520A:

  • Bandwidth ? >20 GHz, A-B mode, >18 GHz, other modes
  • Rise time (10-90%) ? <27 ps, A-B mode, <29 ps, other modes; (20-80%) ? <18 ps, A-B mode, <20 ps, other modes
  • Attenuation (user selectable) ? 5X or 12.5X
  • Differential input range ? ?0.625 V (5X), ?1.6 V (12.5X)
  • Operating voltage window ? 3.7 to ?2.0 V
  • Offset voltage range ? 2.5 to ?1.5 V, A-B mode, 3.4 to ?1.8 V, other modes
  • DC input resistance (differential) ? 100k ohms
  • Noise ? <33 nV / vHz (5X), <48 nV / vHz (12.5X)

If you are looking for the Tektronix P7520A for rent or to buy, request a quote at TRS-RenTelco. We offer calibrated test equipment from Tektronix with 24/7 customer support.
