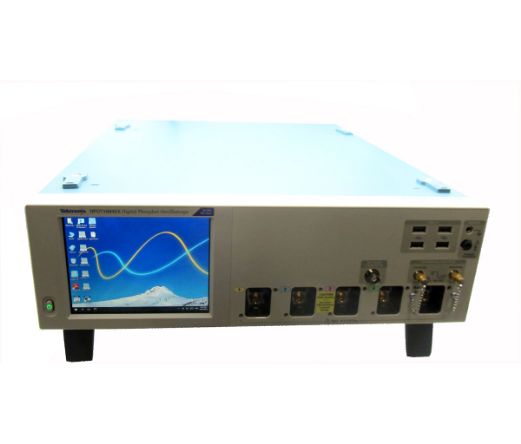

Tektronix DPO71604SX
4 Ch: 16GHz: 50GS/s or16 GHz Digital Phosphor Oscilloscope;
Achieve the highest signal integrity and scalability with the versatile Tektronix DPO71604SX digital phosphor oscilloscope.
The DPO71604SX features low noise ATI architecture, precision time base accuracy, and the tightest timing accuracy. The oscilloscope's high-performance trigger system helps isolate signal flaws for higher accuracy in measurement results. The Tektronix DPO71604SX scope supports high-speed serial and data communications, coherent optical modulation and analysis, and wideband RF signal behavior analysis.
Tektronix DPO71604SX - Features and Specifications:
- Number of analog channels: 4
- Bandwidth: 16 GHz
- Sample rate per channel: 4 Ch. 50 GS/s
- Rise time (typical):
- 10% to 90%: 26 ps
- 20% to 80%: 19 ps
- Vertical Noise (% of full scale), BWE on, max sample rate (typical): 0.43% of full scale @ 0 V offset (500 mVFS)
- Timing resolution: 10 ps (100 GS/s)
- Record length, points (each channel, standard): 62.5 M - 1G
- Duration at highest sample rate (standard): 625 us
The Tektronix DPO71604SX digital phosphor oscilloscope is available for rent or lease at TRS-RenTelco with 24/7 support. To know more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Power Cord Notched
Qty: 1 -
Cover Front
Qty: 1 -
Adapter TCA-292MM
Qty: 5 -
Mouse Optical
Qty: 1 -
Kit Wrist Strap
Qty: 1 -
Keyboard Mini USB
Qty: 1 -
Pouch for Accessories
Qty: 1 -
Cable 2.92(m) - 2.92(m) 1 m
Qty: 1 -
Unit Stacking Pin 1/4 in Diameter 9/16 in Length
Qty: 4 -
Case Hard Transit
Qty: 1 -
Manual User
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Tektronix DPO71604SX Spec Sheet
