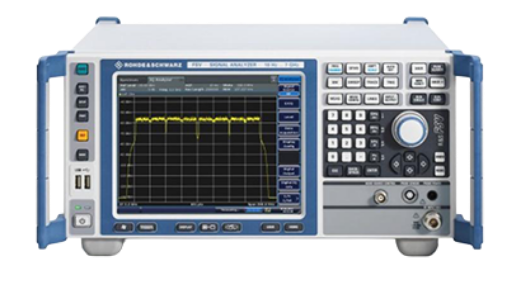

Rohde & Schwarz FSVA13
13.6 GHz Spectrum Analyzer, Type N (f)
The R&S FSVA13 is a spectrum analyzer that offers a frequency range of 10 Hz to 13.6 GHz. The FSVA13 is widely used in cellular and LTE applications, for satellite and communications devices, and radar testing among other things.
Rohde & Schwarz FSVA13 - Features and Specifications:
- Frequency range up to 13.6 GHz
- Up to 160 MHz signal analysis bandwidth
- Convenient, intuitive operation with touchscreen based user interface
- 0.4 dB level measurement uncertainty up to 7 GHz
- Low displayed average noise level (DANL) (e.g. typ. -168 dBm (1 Hz) for the R&S FSVA)
- High third-order intercept (TOI) (e.g. typ. 20 dBm for the R&S FSVA)
- Very low phase noise (e.g. typ. -118 dBc (1 Hz) at 1 GHz and 10 kHz offset for the R&S FSVA)
- General-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics
- Wireless measurement applications for LTE (including LTE-Advanced), WLAN (including IEEE 802.11ac), WCDMA/HSPA , TD-SCDMA, GSM/EDGE, CDMA2000/1xEV-DO, Bluetooth
- Frequency range up to 500 GHz with harmonics mixers
- Keeping test data confidential with removable solid state or hard disk drives
Choose between rent or lease options for the Rohde & Schwarz FSVA13 at TRS-RenTelco.
The latest test equipment - We are constantly investing in new equipment to support emerging technologies that require electronic test and measurement equipment. We are often the first to buy newly introduced products from top T&M manufacturers.
Calibrated equipment - Our experienced team of metrologists and technicians calibrate each product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.
Contact us to learn more and request a quote today.
- Configurations
- Resources
--, B160, K104, K105
See Configuration Details
-
K104
Analysis Of EUTRA/LTE TDD Downlink Signals
-
K105
Analysis Of EUTRA/LTE TDD Uplink Signals
-
B160
Extension To 160MHz Signal Analysis Bandwidth
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
User Documentation for R&S FSV models
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Rohde & Schwarz FSVA13 Spec Sheet
