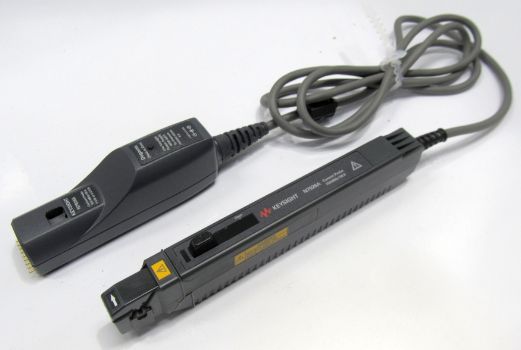

Keysight Technologies N7026A
AC/DC high sensitivity clamp-on current probe, 150MHz
Get an accurate view of your low-level signals with the Keysight (formerly Agilent) N7026A AC/DC high-sensitivity clamp-on current probe.
The Keysight N7026A offers low noise, flat frequency response across the entire bandwidth, and low insertion loss for more accurate measurements. This probe features a degauss and calibration button that quickly removes any residual magnetism and unwanted DC offset, resulting in outstanding accuracy and performance.
The N7026A also aids in debug and analysis when combined with InfiniiVision or Infiniium oscilloscopes.
Keysight N7026A Features and Specifications:
- Bandwidth: DC to 150MHz
- Noise: < 250 uArms
- AutoProbe interface
- Rise time: 2.67 nsec
- Maximum current continuous:
- 30 ADC, 30 Arms (with external power adapter)
- 5 ADC, 5 Arms (without external power adapter) - Maximum peak current (non-continuous) (for pulse-widths < 10 us):
- 40 Apeak (when using external AC power adapter)
- 15 Apeak (without using external power adapter) - Output voltage range: 1V/A and 0.2V/A, automatically switched by the oscilloscope
- Minimum oscilloscope vertical scale: 1mA/div
- Maximum rated power: 3VA (with rated current)
- Maximum input voltage: 300V mains isolated
The Keysight (formerly Agilent) N7026A 150MHz AC/DC high-sensitivity clamp-on current probe is available for rent or lease at TRS-RenTelco with 24/7 support. To learn more or to get a quote, call us at 800.874.7123.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter External Power Supply 36 W
Qty: 1 -
Case Plastic
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N7026A Spec Sheet
