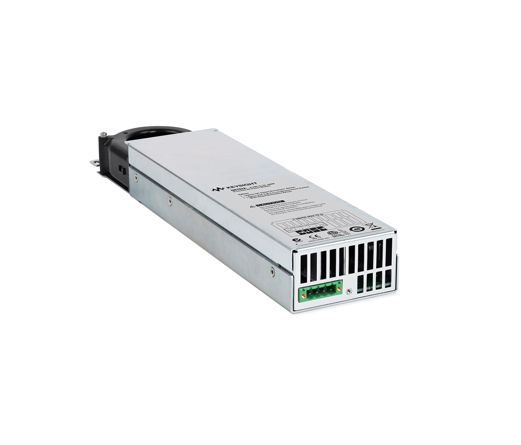

Keysight Technologies N6762A
100W (50V/3A) DC Power Supply Module
The Keysight (formerly Agilent) N6762A is a direct current (DC) power supply module, which can be used to supply power in testing and measurement applications. This module lets you make precise current measurements in milli-amperes and micro-amperes, while reducing noise distortions during measurement. The device is compatible with USB, LAN, GPIB, and LXI standards.
Some key specifications of the Keysight N6762A include:
- Output Voltage: 50 V (derated 1% per C above 40C)
- Output Current: 1.5 A /3 A
- Output Power: 50 W/ 100 W
- Voltage high range: 0.016% 6 mV
- Voltage low range (& Noise from 20 Hz to 20 MHz: Voltage peak-to-peak: 4.5 mV
- Ripple & Noise from 20 Hz to 20 MHz: Voltage rms: 350 micro V
- Ripple & Noise from 20 Hz to 20 MHz: Current rms: 2 mA
- Programming Accuracy (at 23C /-5C after 30 minute warm-up. Applies from min. to max. program)
- (PARD) CC rms: 2 mA Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead)
TRS-RenTelco offers you the Keysight (formerly Agilent) N6762A DC power supply module for rent or purchase with year-long, 24/7 customer support. Our products are calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by expert metrologists and technicians. In case of purchase of the equipment, we also offer a 12 months part and labor warranty. Request a quote today.
<= 5.5 V): 0.016% 1.5 mV- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Assembly
Qty: 2 -
Connector Plug 4-Position
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 0
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 2UA
See Configuration Details
-
2UA
200uA Current Measurement
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Assembly
Qty: 2 -
Connector Plug 4-Position
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 0
*This item has already been added to your cart. Check your cart for quantity and availability.
