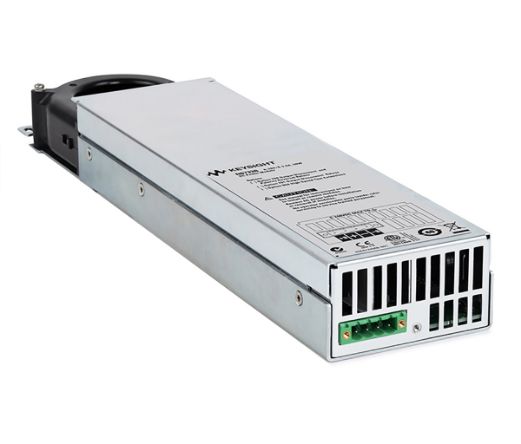

Keysight Technologies N6733B
50W (20V/2.5A) DC Power Supply Module
Output Ratings * Voltage: 20 V * Current (derated 1% per C above 40C): 2.5 A / 5 A * Power: 50 W / 100 W Programming Accuracy (at 23C /-5C after 30 minute warm-up. Applies from min. to max. program) * Voltage: 0.1% 20 mV * Current: 0.15% 20 mA Ripple & Noise from 20 Hz to 20 MHz * CV peak-to-peak: 14 mV * CV rms: 3 mV * (PARD) CC rms: 2 mA Load Effect (Regulation) (for any output load change, with a maximum load-lead drop of 1 V per lead) * Voltage: 9 mV * Current: 2 mA
Read More
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Jumper Assembly
Qty: 2 -
Connector Plug 4-Position
Qty: 1 -
Screw M3 x 0.5 6 mm TORX #10
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N6733B Manual
Keysight Technologies N6733B Spec Sheet
Keysight (formerly Agilent) N6700 Modular DC Power Supply: Selecting a DC Power Module
