Keysight Technologies N5292AQ-444

PNA 110 GHz 4-port frequency extension upgrade bundle

Keysight Technologies - N5292AQ-444

PNA 110 GHz 4-port frequency extension upgrade bundle consisting of:

N5292AQ Product Highlights

• N5292A Millimeter wave test controller

• N5292A-400 Test set, 4 port

• N5292A-444 Interconnect Kit for 4 Port Test Set and 4 Port VNA with 2.4 mm Ports

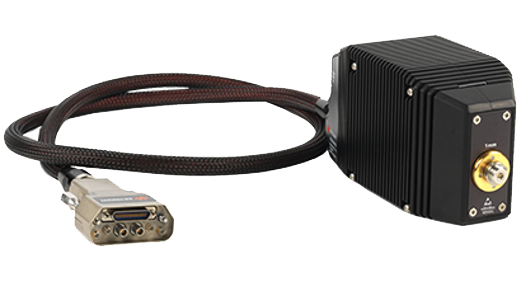

• N5293AX03 Frequency extender 110 GHz, 1.2m cable, LFE with bias-tee, quantity 4

• N5290A301 Frequency extender bias tee adapter kit, quantity 4

• N5290A302 Frequency extender desktop positioner, quantity  4

• Y1900B Adapter, 1.0 mm ruggedized (f) to 1.0 mm (f), DC to 120 GHz

• 11500JK10 110 GHz, 1.0 mm (m-f) Test Port Cable 10 cm, quantity  4

• 85059B Precision calibration kit, 1 mm

• U8489A power sensor; USB thermocouple, 1mm coaxial

Keysight Technologies & TRS-RenTelco

TRS-RenTelco is a proud partner of Keysight Technologies and offers a wide range of rental, purchase and leasing solutions designed specifically to meet the evolving needs of the electronic testing industry.  Our close relationship with Keysight Technologies allows us to ensure we have the right Network/Impedance Analyzers solution for your job.

Renting Network/Impedance Analyzers

With TRS-RenTelco, renting Network/Impedance Analyzers equipment has never been easier. Enjoy same-day shipping, lease, and finance options on our inventory of over 5000 electronic testing equipment rentals. As one of North America’s largest test equipment rental providers, it is our mission to support the endeavors of our clients no matter how big or small with reliable expertise, excellent customer service, accuracy, and speed.

Links to Additional Information

Keysight Technologies Products from TRS-RenTelco

Other Network/Impedance Analyzers from TRS-RenTelco

Keysight Technologies Home Page

Read More
  • Configurations
  • Resources
--, 1sr 11500JK10, 1st N5290A301, 1st N5290A302, 1st N5293AX03, 2nd 11500JK10, 2nd N5290A301, 2nd N5290A302, 2nd N5293AX03, 3rd 11500JK10, 3rd N5290A301, 3rd N5290A302, 3rd N5293AX03, 4th 11500JK10, 4th N5290A301, 4th N5290A302, 4th N5293AX03, 85059BB, N5292A, N5292A-400, N5292A-444, U8489AA, Y1900B
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
  • REAR FOOT SCREW

    Qty: 4
  • Termination U-Wave 50 GHz 2.4 mm(m)

    Qty: 4
  • MAGNIFIER,10X.

    Qty: 1
  • 110GHz , 1.0 mm (m-f) test port cable 10cm

    Qty: 4
  • Cord Power

    Qty: 1
  • Cable BNC

    Qty: 4
  • Cable Assembly-Coaxial 50-Ohm SMA (m-m), 12 inch

    Qty: 5
  • Load - male 1mm 50GHz

    Qty: 1
  • Load - female 1mm 50GHz

    Qty: 1
  • NFTS Offset short - male 1mm (SHORT 1).

    Qty: 1
  • NFTS Offset short-female 1mm (SHORT1).

    Qty: 1
  • NFTS Offset short - male 1mm (SHORT 2).

    Qty: 1
  • NFTS Offset short-female 1mm (SHORT2).

    Qty: 1
  • NFTS Offset short -male 1mm (SHORT 3).

    Qty: 1
  • NFTS Offset short-female 1mm (SHORT3).

    Qty: 1
  • NFTS Offset short - male 1mm - Short 4

    Qty: 1
  • NFTS Offset short-female 1mm (SHORT 4).

    Qty: 1
  • NFTS Precision adapter 1.0mm male-male

    Qty: 1
  • NFTS Precision adapter 1.0mm female-female

    Qty: 1
  • NFTS Precision adapter 1.0mm male-female

    Qty: 1
  • Offset Open, Male 1mm

    Qty: 1
  • Offset Open, Female 1mm

    Qty: 1
  • HARD CARRYCASE FOR (85059B 1.0 mm Precision Calibration Kit).

    Qty: 1
  • 6mm open end wrench

    Qty: 1
  • Wrench Torque 4 in-pounds 6 mm Open End

    Qty: 1
  • TORQUE WRENCH .5 N.M. 4 IN-LB 14mm

    Qty: 1
  • Cable Assembly Extension 25-Pin D-Sub(m) - 25-Pin D-Sub(m)

    Qty: 1
  • Upper lock foot, right, small

    Qty: 1
  • Upper lock foot, left, small

    Qty: 1
  • Cable Assy-RF, SMA/SMA 16 inch 26.5 GHz

    Qty: 1
  • Assembly - Triax Adapter (f)

    Qty: 4
  • Cable Assy, LEMO to BNC (m)

    Qty: 4
  • Sliding Extender Desktop Positioner w/Adjustment Screw Handle Attachment

    Qty: 4
  • lower lock foot, right

    Qty: 1
  • lower lock foot, left

    Qty: 1
  • Cable Assy-RF, RF SRC to TS, SMA-2.4mm

    Qty: 4
  • Cable Assy-RF, 4P DCNA to TS - A, SMA-2.4mm

    Qty: 2
  • Cable Assy-RF, 4P DCNA to TS-B, SMA-2.4mm

    Qty: 2
  • Millemeter wave test controller

    Qty: 1
  • GRIP FEET (HAS QTY 4)

    Qty: 16
  • SLIP FEET (HAS QTY 4)

    Qty: 16
  • Frequency Extender, 110 GHz, 1.2m cable, LFE with bias tee

    Qty: 4
  • Cable Trigger

    Qty: 1
  • USB Average Power Sensor DC-120GHz

    Qty: 1
  • Adapter, 1.0mm ruggedized (f) to 1.0mm (f), DC to 120GHz

    Qty: 1
