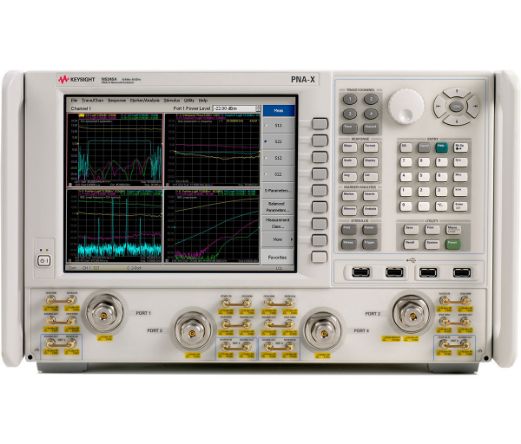

Keysight Technologies N5245AS-485
4-port, 10 MHz - 50 GHz PNA-X Network Analyzer Hi Pwr Config
The Keysight (formerly Agilent) N5245AS-485 is a PNA-X variant of network analyzers offered by Keysight. This analyzer comes with option H85, which makes it well-suited for high-power measurements. This analyzer has 4 ports for analysis and measurement and can operate at a high maximum frequency of 50 GHz. The N524xAS Option H85/485 removes the bias-tees between the source attenuators and the test port couplers. This extends the maximum port power that the analyzer can safely handle to 43 dBm. Selecting Option H85/485 adds internal attenuators and cables.
Specifications
- Maximum Frequency: 50 GHz
- Dynamic Range: 124 dB
- Output Power: 13 dBm
- Trace Noise: 0.002 dBrms
- Number of Built-In Ports: 2 or 4 ports
- Harmonics: -60 dBc
- Noise Floor: -111 dBm
- Best Speed at 201 Point, 1 Sweep: 5.5 ms
- Network Analyzer Series: PNA-X (Most Advanced and Flexible)
- Benchtop: Yes
Applications
- S-Parameters
- Noise Figure
- Gain Compression
- X-Parameters
- Balance Measurements
- Pulsed RF
- IMD
Components
- Antennas
- Mixers/Frequency Converters
- Amplifiers
TRS-RenTelco offers the Keysight (formerly Agilent) N5245AS-485 PNA-X network analyzer for rent or for lease with our 24/7, 365-day customer support. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. We ship the product with minimal lead time. Request a quote today.
- Configurations
- Resources
--, 010, 021, 022, 025, 080, 083, 400, 419, 423, H85
See Configuration Details
-
419
Add extended power range to 4 port analyzer (no bias-tees)
-
423
Add internal combiner and mechanical switches to 4-port analyzer
-
H85
High Power Configuration
-
010
Time domain measurements
-
021
Add pulse modulator to internal first source
-
022
Add pulse modulator to internal second source
-
025
Add four internal pulse generators
-
080
Frequency-offset measurements
-
083
Vector and scalar calibrated converter measurements
-
400
4 ports, dual source
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cable Guard
Qty: 2 -
Cable Guard
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
Cover Front
Qty: 1 -
Cover Rear
Qty: 1 -
Termination U-Wave 50 GHz 2.4 mm(m)
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 16 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 010, 020, 021, 022, 025, 080, 083, 087, 400, 419, 423, H08, H85
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
PULSE/IO ADAPTER
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 008, 010, 021, 022, 025, 028, 029, 080, 083, 089, 400, 419, 423, H85
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N5245AS-485 Spec Sheet
Keysight Technologies N5245AS-485 Configuration Guide
