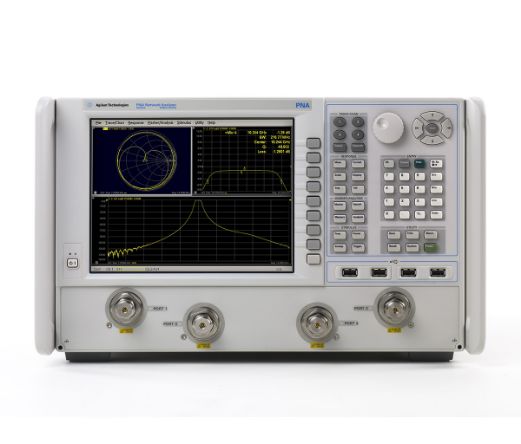

Keysight Technologies N5225A-417
4-port, 10 MHz - 50 GHz PNA Network Analyzer, 2.4 mm (m)
The Keysight N5225A-417, popular for its performance, consistency and advanced applications for analysis and measurement, comes under the brand's acclaimed PNA-X series of network analyzers. Equipped with a host of features, the Keysight N5225A-417 is one of the most sought-after network analyzers today.
The N5225A-417's exceptional performance provides the best data correlation between design verifications and production tests and helps you get results with less guard band.
Keysight, formerly Agilent N5225A-417 - Key Features and Specifications:
- 10 MHz to 50 GHz
- 2-ports with single source or 4-ports with two built-in sources
- 127 dB system and 132 dB receiver dynamic range, 32,001 points, 32 channels, 15 MHz IF bandwidth
- Dynamic accuracy: 0.1 dB compression with 12 dBm input power at the test port
- High output power (13 dBm) and a wide power sweep range (38 dB)
- Low noise floor of -114 dBm at 10 Hz IF bandwidth
The Keysight N5225A-417 is available for lease or rent from TRS-RenTelco with 24/7 customer support.
The latest test equipment - We understand your interests in having the latest and the best in test equipment and are one of the first to buy newly introduced equipment from top T&M manufacturers. If you need a new equipment model, we probably have it in stock.
Calibrated equipment - Our experienced team of metrologists and technicians calibrate each product like the Keysight N5225A-417 to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory.
Fast delivery options - We are located on the grounds of DFW Airport with a FedEx pickup time of 10:00 PM each day. This lets us take orders as late as 8:00 PM and have the equipment delivered the following morning.
Contact us and request a quote today.
- Configurations
- Resources
--, 417
See Configuration Details
-
417
4 ports, dual source, configurable test set, extended power range
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Cable Guard
Qty: 2 -
Cable Guard
Qty: 1 -
Handle Kit 6-Hole
Qty: 1 -
Power cord Right Angle
Qty: 1 -
Keyboard USB
Qty: 1 -
Mouse Optical
Qty: 1 -
Cover Front
Qty: 1 -
Cover Rear
Qty: 1 -
Cable Assembly Semi-Rigid Jumper 2.4 mm
Qty: 12 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 080, 086, 087, 088, 089, 417
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 080, 089, 417
*This item has already been added to your cart. Check your cart for quantity and availability.
080, 089, 417
*This item has already been added to your cart. Check your cart for quantity and availability.
417
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies N5225A-417 Spec Sheet
Keysight Technologies N5225A-417 Configuration Guide
Keysight Technologies N52xxA Configuration Guide
