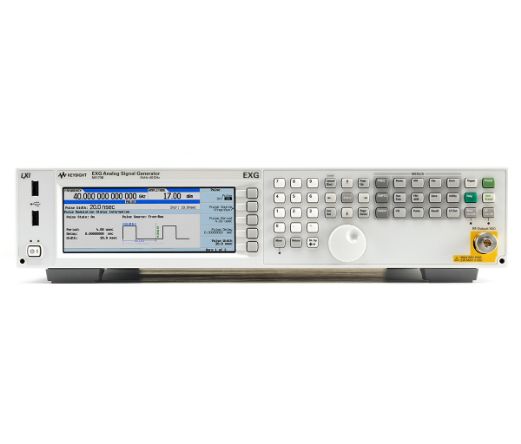

Keysight Technologies N5173B-513
9 kHz - 13 GHz EXG Analog Signal Generator, Type N (f)
The Keysight, formerly Agilent N5173B-513 is a 13 GHz EXG Analog Signal Generator. The N5173B-513 can be used to test microwave components and receiver parameters. This includes performing LO up conversion for microwave backhaul links and CW blocking for receiver testing.
Keysight N5173B-513 - Specifications
Output Power @1 GHz: 23
Phase Noise @1 GHz (20 kHz offset): -122 dBc/Hz
Harmonics @1 GHz: <-40 dBc
IQ Modulation BW Internal/External: n/a
Non-Harmonics @1 GHz: -72 dBc
Sweep Mode
- List
- Step
Baseband Generator Mode: n/a
Software-General Purpose
- AM, FM, PM
- Multifunction Generator
- Pulse
- Pulse Train Generator
Software-Cellular/Wireless Connectivity: n/a
Software-Audio/Video Broadcasting: n/a
Software-Detection/Positioning/Tracking/Navigation: n/a
Waveform Playback Memory: n/a
Frequency Modulation-Maximum Deviation @1 GHz: 10 MHz
Frequency Modulation-Rate @100 kHz Deviation: DC to 7 MHz
Phase Modulation-Maximum Deviation in Normal Mode: 1.25 to 160 rad
Phase Modulation-Maximum Deviation in High-BW Mode: 0.125 to 16 rad
Amplitude Modulation-Maximum Depth: 100%
Amplitude Modulation-Rate
0 to 100 kHz
Applications Available: Yes
Analog: Yes
Frequency Switching = 600 ?s
Rent or lease the N5173B-513 analog signal generator from TRS-RenTelco with 24/7 customer support. Our products are calibrated to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory by expert metrologists and technicians. Request a quote today.
- Configurations
- Resources
--, 1E1, 513
See Configuration Details
-
1E1
Step attenuator, 115 dB
-
513
Frequency range, 9 kHz to 13 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter APC 3.5 mm(f) - APC 3.5 mm(f)
Qty: 1 -
Cover Front
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 006, 1E1, 513, UNT, UNW
See Configuration Details
-
1E1
Step attenuator, 115 dB
-
UNT
AM, FM phase modulation
-
513
Frequency range, 9 kHz to 13 GHz
-
006
Instrument security and removable memory card
-
UNW
Narrow pulse modulation
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter APC 3.5 mm(f) - APC 3.5 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EA, 513, UNW
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 1E1, 1EA, 513
See Configuration Details
-
1E1
Step attenuator, 115 dB
-
1EA
High output power
-
513
Frequency range, 9 kHz to 13 GHz
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Adapter APC 3.5 mm(f) - APC 3.5 mm(f)
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
USB Software I/O Libraries
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
