Keysight Technologies N4693A-00F
2-port, 10 MHz - 50 GHz Ecal Module, 2.4 mm (f-f)
The Keysight N4693A-00F, formerly Agilent N4693A-00F, is an Electronic Calibration Module or ECal built to help calibrate vector network analyzers. It comes with a frequency range of 10 MHz to 50 GHz, 2.4 mm connectors and 2-port inputs.
Key Features and Specifications of the Keysight N4693A-00F:
- 10 MHz to 50 GHz frequency range
- USB interface for direct control with PNA and ENA series of network analyzers
- Fast calibration
- Full two-port calibration with a single connection
- Reduced connector wear
- NIST traceable accurate calibrations
- Reliable solid-state switching
You can choose to rent or lease the Keysight N4693A-00F from TRS-RenTelco. We have an experienced team of metrologists and technicians that calibrates every product to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Contact us to know more or request a quote today.
- Configurations
- Resources
--, 00F, 150
See Configuration Details
-
00F
Both 2.4 mm connectors are female
-
150
Wooden storage box
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Spanner Wrench
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Wrench Torque 8 in/lb 5/16 in Open End
Qty: 1 -
Wrench 1/2 and 9/16 in
Qty: 1 -

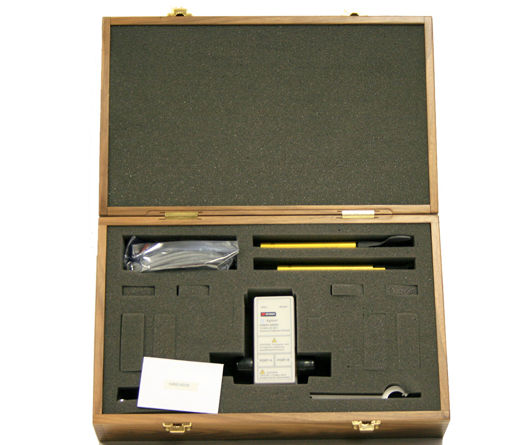

Ecal Module 2.4 mm(f) - 2.4 mm(f)
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
Box Wooden
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies ECAL Module Spec Sheet
