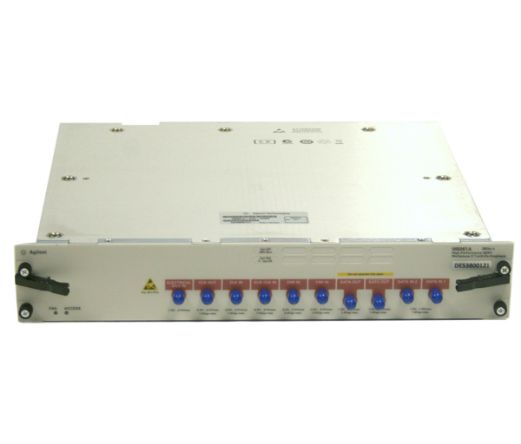

Keysight Technologies M8061A
Multiplexer 2:1 with De-emphasis 28 Gb/s
Characterize serial interfaces up to 32.0Gb/s with the Keysight (formerly Agilent) M8061A 2:1 multiplexer. It comes with optional de-emphasis to extend the rate of J-BERT M8020A and J-BERT N4903B pattern generator.
The M8061A can be used for typical applications requiring testing, such as optical transceivers, SERDES and chip-to-chip interfaces, backplanes, cables, and repeaters.
Keysight M8061A Features and Specifications:
- Extend data rate of J-BERT M8020A up to 32Gb/s
- Extend data rate of J-BERT N4903B pattern generator up to 28.4Gb/s
- Adjustable positive and negative de-emphasis for up to 8 taps, optional
- Internal superposition of interference for common-mode and differential mode
- Transparent to jitter generated by J-BERT M8020A and N4903B
- Clock/2 jitter can be added
- Electrical idle
- Control from J-BERT M8020A and N4903B user interface via USB
The Keysight (formerly Agilent) M8061A 2:1 multiplexer is available for rent or lease at TRS-RenTelco with 24/7 customer support. Contact us at 800-874-7123 for more information.
- Configurations
- Resources
--, 001, 004, 801
See Configuration Details
-
001
Multiplexer 2:1, 28 Gb/s
-
004
4-tap De-emphasis
-
801
Matched Cable Kit for connecting
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
ESD Mat with Ground Cord Anti-Static
Qty: 1 -
LOAD, 50 Ohm 2.4 mm (m)
Qty: 2 -
Cable USB-A - USB-MiniB
Qty: 1 -
Heel Ground Strap
Qty: 1 -
External Cable Set for M8061A
Qty: 1 -
Chassis Assembly Support AXIe
Qty: 1 -
Manual Getting Started
Qty: 1 -
Rosenberger Cable Discharger and Cable
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 001, 004, 008, 802, 804
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
LOAD, 50 Ohm 2.4 mm (m)
Qty: 2
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies M8061A Spec Sheet
