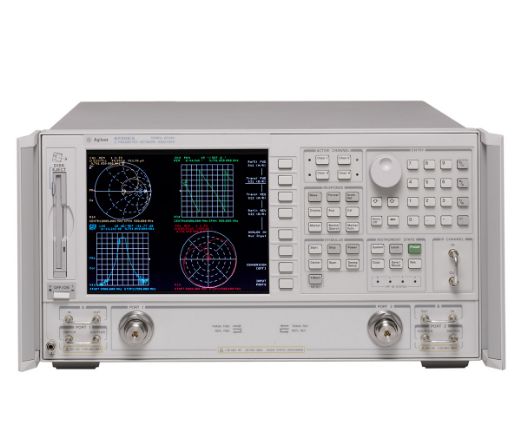

Keysight Technologies 8720ES
2-port, 50 MHz - 20 GHz, Vector Network Analyzer, 3.5 mm (m)
The Keysight (formerly Agilent) 8720ES vector network analyzer allows complete characterization of RF and microwave components. The 8720ES includes an integrated synthesized source, test set and tuned receiver. The built-in S-parameter test set provides a full range of magnitude and phase measurements in both the forward and reverse directions. Built-in vector accuracy enhancement techniques include full two-port, adapter-removal, and optional TRL calibration.
Features:
- 50 MHz to 20 GHz 100 dB of dynamic range
- Excellent measurement accuracy
- Two measurement channels
- Four display channels
- Frequency and power sweeps Fast sweep and data transfer speed
- Pass/Fail testing, powerful marker functions
- Electronic calibration (ECal)
- Internal automation with test-sequencing
- Optional time-domain, high power test set, four samplers and TRL calibration, direct sampler access, frequency-offset mode
TRS-RenTelco's wide range of well-maintained and fully calibrated test equipment lets you focus on the task at hand and get accurate results quickly. If you are looking for 8720ES network analyzers for rent or lease, contact us or request a quote today.
- Configurations
- Resources
- FAQsAI
1D5
See Configuration Details
-
1D5
High Stab Time Base
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Reference Jumper SMA(m) - SMA(m)
Qty: 1 -
Filter Bandpass
Qty: 1 -
Connecting Bar BNC
Qty: 1 -
Cord Power
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1 -
Handle Kit 5-Hole
Qty: 1 -
CD Product Documentation
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Reference Jumper SMA(m) - SMA(m)
Qty: 1 -
CD Product Documentation
Qty: 1 -
Filter Bandpass
Qty: 1 -
Cord Power
Qty: 1 -
Wrench Torque 8 in/lb 20 mm Open End
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
010
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Reference Jumper SMA(m) - SMA(m)
Qty: 6
*This item has already been added to your cart. Check your cart for quantity and availability.
400
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Reference Jumper SMA(m) - SMA(m)
Qty: 6
*This item has already been added to your cart. Check your cart for quantity and availability.
007, 010
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Reference Jumper SMA(m) - SMA(m)
Qty: 6
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 8720ES Manual
Keysight Technologies 8720ES Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Keysight 8720ES?
The Keysight 8720ES is a 2-port vector network analyzer that provides complete characterization of RF and microwave components from 50 MHz to 20 GHz.
What unique technology does the 8720ES feature?
It includes an integrated synthesized source, S-parameter test set, and tuned receiver, with built-in vector accuracy enhancement techniques like full two-port and optional TRL calibration.
What are the size and weight specifications of the 8720ES?
The device measures approximately 330 mm x 425 mm x 680 mm (13 in x 17 in x 27 in) and weighs about 26 kg (57 lbs).
What is the dynamic range of the 8720ES?
The analyzer provides a dynamic range of up to 100 dB.
How is the 8720ES powered?
It operates on a standard AC power supply, suitable for laboratory and field use.
What accessories are included with the 8720ES?
Standard accessories include a reference jumper, filter bandpass, connecting bar BNC, power cord, torque wrench, handle kit, and product documentation on CD.
What applications is the 8720ES suitable for?
It is ideal for characterizing RF and microwave components, including testing in telecommunications, aerospace, and defense industries.
What are the benefits of using the 8720ES?
The analyzer offers excellent measurement accuracy, fast sweep and data transfer speeds, and comprehensive calibration options.
What additional features does the 8720ES offer?
Features include pass/fail testing, powerful marker functions, electronic calibration (ECal), and internal automation with test sequencing.
How can one rent or lease the Keysight 8720ES from TRS-RenTelco?
The 8720ES can be rented or leased by requesting a quote through the TRS-RenTelco website, offering flexible financial solutions and customer service support.
