Keysight Technologies 86118A
70 GHz dual remote sampling head

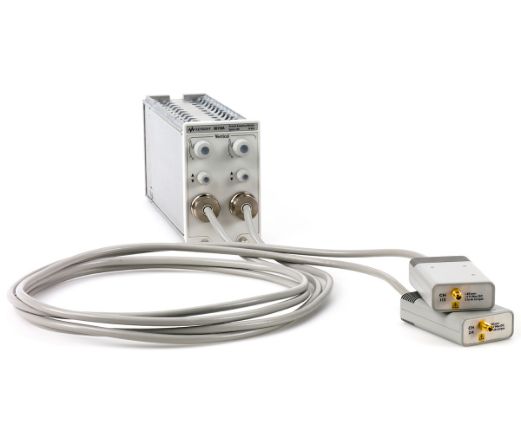

The Keysight 86118A 70 GHz dual remote sampling head is unique - the sampling electronics are placed in a lightweight casing that can be placed up to 2 meters away from the mainframe, thereby diminishing loss through cabling.
The frequency response in the 86118A minimizes decrease of the signal spectrum and ensures fast edge speeds. With 70 GHz of electrical bandwidth, the Keysight 86118A provides one of the rapidest channel performances available today.
Keysight, formerly Agilent 86118A - Key Features and Specifications:
- Two 70 GHz electrical channels with 1.85 mm (f) connectors on two remote sampling heads
- Characteristic rms noise: 0.4 mV (30 GHz BW), 1.3 mV (70 GHz BW)
- Maximum input signal: plus/negative 2 Vdc
- Cable length: 2 m (each head)
- Electrical inputs: 1.85 mm female. Must select m or f connector savers (see options)
You can rent or purchase the Keysight 86118A from TRS-RenTelco with 24/7 customer support.
The latest test equipment - We are constantly investing in new equipment to support emerging technologies that require electronic test and measurement equipment. We are often the first to buy newly introduced products from top T&M manufacturers.
Calibrated equipment - Our skilled technicians and metrologists calibrate each product like the Keysight 86118A to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant lab.
Fast delivery options - We are located on the grounds of DFW Airport with a FedEx pickup time of 10:00 PM each day. This lets us take orders as late as 8:00 PM and have the equipment delivered the following morning.
Contact us to learn more or request a quote today.
- Configurations
- Resources
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Wrench Torque 8 in/lb 5/16 in Open End
Qty: 1 -
Manual Protecting Your Investment
Qty: 1 -
Manual Installation Guide
Qty: 1 -
Thumb Wrench
Qty: 2 -
Adapter 1.85 mm(m) - 1.85 mm(f)
Qty: 2 -
Case SKB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 86118A Spec Sheet
