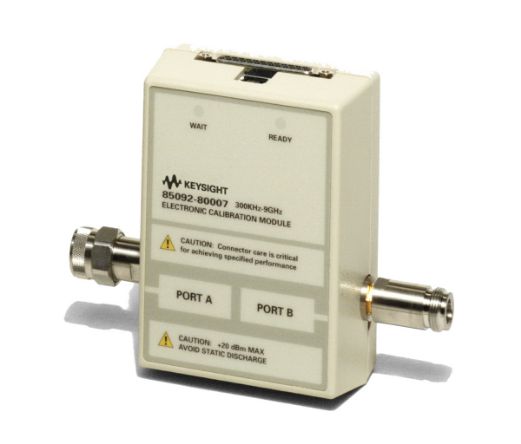

Keysight Technologies 85092C
2-port, 300 kHz - 9 GHz, Type N RF ECal Module
The Keysight (formerly Agilent) 85092C RF electronic calibration (ECal) module makes calibration of vector network analyzers fast, easy, and accurate. The RF ECal system is now easily controlled by one of two methods depending on the network analyzer. The Keysight (formerly Agilent) PNA and ENA series of network analyzers controls the module directly via the USB interface. The modules can also be controlled via an 85097B interface kit used with an Keysight (formerly Agilent) 8753E/ES/ET or 8720D/ES/ET.
ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
Features
Read More
ECal is an ideal solution for calibrating network analyzers. Performing a full two-port calibration takes less than half the time and number of connections using ECal versus mechanical cal kits. Furthermore, the accuracy of the calibration is comparable between electronic and mechanical methods. Traditional mechanical calibrations require intensive operator interaction which is prone to errors. With ECal, the operator simply connects the ECal module to the network analyzer and the software controls the rest.
Features
- Fast full two-port calibration with a single connection
- Simple non-insertable device calibration
- NIST traceable accurate calibrations
- Reduced connector wear
- USB interface for direct control with PNA and ENA series of network analyzers
- Reliable solid-state switching
- Configurations
- Resources
--, 150, MOF
See Configuration Details
-
150
Wooden storage box
-
MOF
One female and one male connector, both type-N 50 ohm
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Torque Wrench 3/4 in
Qty: 1 -
Ecal Module N(m) N(f) 50 Ohm
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
Box Wooden
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 00F
See Configuration Details
-
00F
Both Type-N 50-Ohm connectors are female on module
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Torque Wrench 3/4 in
Qty: 1 -
Box Wooden
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Ecal Module N(f) Ports 50 Ohm
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 00A, 00F
See Configuration Details
-
00A
Add Type-N 50-Ohm Adapters
-
00F
Both Type-N 50-Ohm Connectors Are Female On Module
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Barrel Adapter N(f) - N(f)
Qty: 1 -
Adapter N(m) - N(m)
Qty: 1 -
Torque Wrench 3/4 in
Qty: 1 -
Box Wooden
Qty: 1 -
Cable USB-A - USB-B
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1 -
Ecal Module N(f) Ports 50 Ohm
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, M0F
See Configuration Details
-
M0F
One female and one male connector, both type-N 50 ohm
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cable USB-A - USB-B
Qty: 1 -
Ecal Module N(m) N(f) 50 Ohm
Qty: 1 -
Torque Wrench 3/4 in
Qty: 1 -
Box Wooden
Qty: 1 -
USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Keysight Technologies 85092C Spec Sheet
