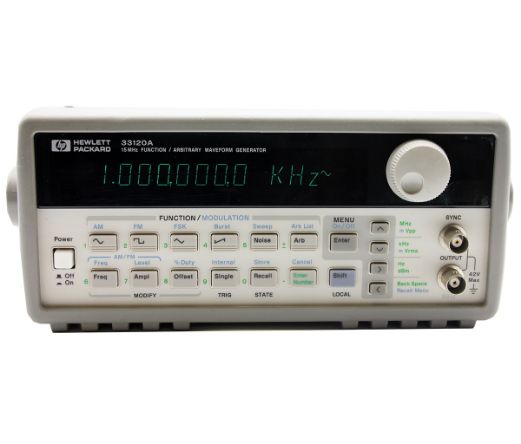

Keysight Technologies 33120A
15 MHz Function / Arbitrary Waveform Generator
Create stable output signals for clean, low-distortion sine waves with the Keysight (formerly Agilent) 33120A function/arbitrary waveform generator. Inject the waveforms into a device under test (DUT) and measure its performance for anomalies.
The Keysight 33120A offers robust performance, custom waveforms, and phase-lock capabilities.
It can generate accurate repetitive or single-shot electrical waveforms and custom waveforms, such as heartbeats or outputs of mechanical transducers. The 33120A also provides fast rise and fall-time square wave and linear ramp waveforms, down to 100 Hz.
33120A Features and Specifications
- 15MHz sine and square wave outputs
- Waveform length: 8 to 16,000 points
- Resolution: 10 uHz or 10 digits
- Waveforms: Sine, triangle, square, ramp, and noise
- 12-bit resolution
- 40 MSa/s sample rate
- 16,000-point deep arbitrary waveforms
- Direct digital synthesis for excellent stability
- Internal AM/FM modulation
- Linear and logarithmic sweeps and burst operation
- IntuiLink software plus with GPIB (IEEE-488) and RS-232 interfaces
- AM (internal/external), FM (internal), FSK (internal/external), burst (internal/external)
- Option 001 phase-lock capability for quick phase changes
- Straightforward and intuitive front panel
- Highly visible vacuum fluorescent display For all features and specs, refer to the product data sheet.
For up to 120MHz wave output, check out the Keysight 33622A.
33120A Function Generator Accessories
- Agilent 33120A waveform generator
- User's guide
- Service guide
- Quick reference guide
- IntuiLink connectivity software
- Test data
- Power cord
- RS-232 serial cable
Optional Accessories:
- Phase lock/TCXO time base
- BenchLink Arb software (34811A)
- Rack-mount kit (34190A)
- Extra manual set
- Accessories pouch (34161A)
Keysight 33120A Price and Rental Plans
The 33120A function/arbitrary waveform generator costs between $595 and $895, depending on options, such as the phase lock/TXCO time base. To rent or buy the 33120A function generator, talk to us about quotes and offers.
What Are the Benefits of DDS Technology in the Keysight (Formerly Agilent) 33120A?
Direct digital synthesis (DDS) technology reduces the complexity of the function generator. Keysight uses digital control logic for precise measurements and higher frequency stability. You can easily adjust the frequency by creating a waveform with as many points as you want by selecting them from the memory using a phase accumulator.
