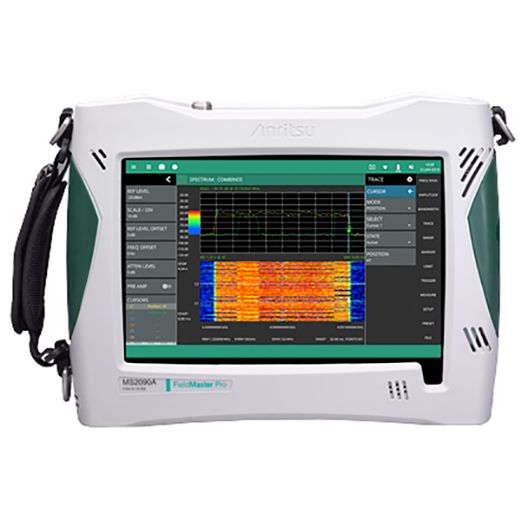

Anritsu MS2090A-743
43 GHz Handheld Spectrum Analyzer, 2.92 mm(m)
Features:
- 9 kHz to 43.5 GHz
- DANL: -164 dBm (with preamp)
- TOI: 20 dBm (typical)
- Analysis bandwidth: 100 MHz
- Amp range: DANL to 30 dBm
- Phase noise at 1 GHz: -110 dBc/Hz @ 100 kHz offset (typical)
- Demodulation: 5GNR, RF, and modulation quality plus SSB signal analysis
- Resolution bandwidth (RBW): 1 Hz to 10 MHz
- RTSA bandwidth: 110 MHz
- Amplitude accuracy: < 14 GHz plus/minus 1.3 dB (plus/minus 0.5 dB, typical)
- Zero span with 60 ns minimum span
- Configurations
- Resources
- FAQsAI
--, 104, 199, 24, 31, 431, 743, 888, 90
See Configuration Details
-
31
GPS Receiver (Requires GPS Antenna PN 2000-1528-R, 2000-1652-R or 2000-1760-R)
-
888
5G NR Downlink Measurements (Requires Option 31)
-
743
Spectrum Analyzer, 43.5 GHz
-
199
Real-Time Spectrum Analysis (RTSA)
-
104
100 MHz Analysis Bandwidth
-
90
Gated Sweep
-
24
Interference Finder
-
431
Coverage Mapping (Requires Option 31)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable Ethernet Cat5 7 ft
Qty: 1 -
Antenna GPS
Qty: 1 -
Battery Lithium Ion High Capacity 81W
Qty: 1 -
Case Soft
Qty: 1 -
Cable BNC(m) - SMB(f)
Qty: 1 -
Adapter Amphenol BNC(f) - SMB(f)
Qty: 1 -
Power Supply FieldMaster
Qty: 1 -
Stylus with S-Hook
Qty: 1 -
Strap Shoulder
Qty: 1 -
USB A to USB C 1-1.5M
Qty: 1 -
SOFTWARE AND MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
--, 104, 199, 31, 743, 883, 888, 90
See Configuration Details
-
104
Option 104; 100 MHz analysis bandwidth
-
199
Option 199; Real-time spectrum analysis (RTSA)
-
31
Option 31; GPS receiver (requires GPS Antenna PN 2000-1528-R; 2000-1652-R or 2000-1760-R; sold separately)
-
743
Option 743; Spectrum analyzer; 43.5 GHz
-
883
Option 883; LTE FDD Measurements (Requires Option 31)
-
888
Option 888; 5G NR Downlink Measurements (requires Option 31)
-
90
Option 90; Gated sweep
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Cable Ethernet Cat5 7 ft
Qty: 1 -
Antenna GPS
Qty: 1 -
Battery Lithium Ion High Capacity 81W
Qty: 1 -
Case Soft
Qty: 1 -
Cable BNC(m) - SMB(f)
Qty: 1 -
Adapter Amphenol BNC(f) - SMB(f)
Qty: 1 -
Power Supply FieldMaster
Qty: 1 -
Stylus with S-Hook
Qty: 1 -
Strap Shoulder
Qty: 1 -
USB A to USB C 1-1.5M
Qty: 1 -
SOFTWARE AND MANUALS ON USB
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Anritsu MS2090A-743 Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Anritsu MS2090A-743?
It's a high-performance handheld spectrum analyzer within the Field Master Pro™ series, featuring real-time spectrum analysis capabilities.
What frequency range does the MS2090A-743 cover?
It offers frequency coverage up to 43.5 GHz.
What are the key features of the MS2090A-743?
Key features include modulation bandwidth up to 110 MHz, dynamic range greater than 106 dB, and a high sensitivity with a displayed average noise level (DANL) of –164 dBm.
What applications is the MS2090A-743 suitable for?
The MS2090A-743 is designed for advanced field applications including wireless measurements, electromagnetic field (EMF) measurements, and signal mapping.
