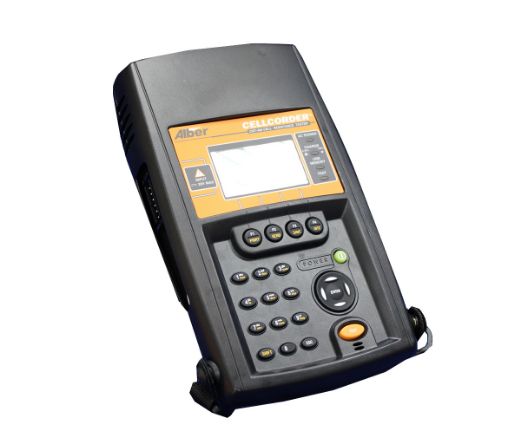

Alber CRT-400
Cellcorder Handheld Cell Voltage and Resistance Tester
The Cellcorder CRT-400 handheld cell voltage and resistance tester measures and records cell float voltage, internal cell resistance, and intercell connection resistance.
The USB port and Flash drive allows quick transfer of data files to a computer. Using the Alber Battery Analysis Software, test results can be displayed and analyzed to determine battery state of health. The Flash drive also doubles as an interim storage device until test data is saved permanently.
Other features include a graphical reflective LCD display for better contrast, and new cables and clamps.
The Cellcorder cell resistance tester displays and records cell float voltage, internal cell resistance, and intercell connection resistance. A compatible hydrometer allows users to transfer specific gravity and temperature data using the IR port.
The Cellcorder can be used on a single cell or multicell modules. The Flash drive allows virtually unlimited data storage and the Flash drive or IR port can be utilized to transfer readings to a PC for analysis and report generation.
The high contrast, 128 x 64 pixel, backlit graphical display shows menus and test results. A fully charged Cellcorder can test for seven hours, and isolated operation helps ensure safety and makes the Cellcorder easy to move around.
- Configurations
- Resources
- FAQsAI
--, 1101-005, 1ST 007-45, 1ST 02-006, 2ND 007-45, 2ND 02-006
See Configuration Details
-
2ND 02-006
Spike Probe Tips 10 " Straight - (Two required per handle set)
-
1101-005
Spike Probe Handle Set without Intercell
-
1ST 007-45
Spike Probe Tips 24" Angled (Two required per handle set)
-
1ST 02-006
Spike Probe Tips 10 " Straight - (Two required per handle set)
-
2ND 007-45
Spike Probe Tips 24" Angled (Two required per handle set)
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
USB Drive 2 GB
Qty: 1 -
Power Cord ACC-09 2-Prong
Qty: 1 -
Software
Qty: 1 -
CRT Voltage Leads Assembly
Qty: 1 -
CRT Test Leads Assembly
Qty: 1 -
Handle Set for Spike Probes Red and Black
Qty: 1 -
Spike Probe with Light Short for CRT-400
Qty: 2 -
Spike Probe with Light Long for CRT-400
Qty: 2 -
Strap Shoulder
Qty: 1 -
Power Supply Desktop 5 V 4 A
Qty: 1 -
Carrycase with Label
Qty: 1 -
Battery Lithium Ion 3.7 V 9.6 Ah
Qty: 1 -
Manual Quick Start and Operating Instruction
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Alber CRT-400 Spec Sheet
Alber CRT-400 Quick Start Guide
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the Alber CRT-400?
It's a handheld Cellcorder designed to identify failing batteries using a patented DC resistance test, ensuring compliance with IEEE battery maintenance and testing practices.
What are the key features of the CRT-400?
Features include float voltage readings, internal cell resistance measurement, intercell and intertier resistance connection, and compatibility with various battery types including NiCad and multicell modules up to 16V.
What advantages does the CRT-400 offer?
It provides reliable readings in noisy environments, easy data transfer via USB flash drive, and supports multiple test lead options for different battery types.
