A.H. Systems AK-2G
20Hz to 2GHz Antenna Kit

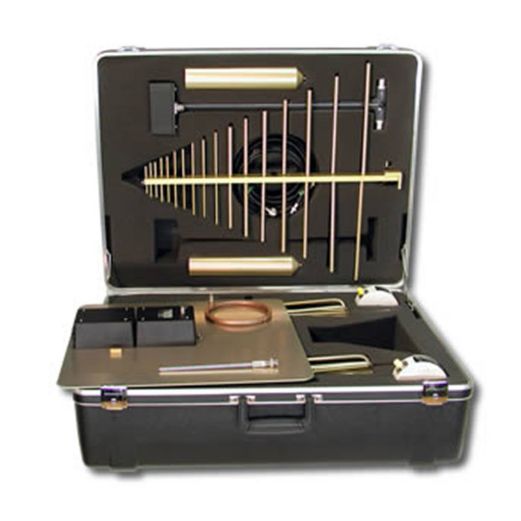

Each kit provides all the reliable antennas, current probes, and accessories needed to satisfy a wide array of customer requirements. Each component has a specific storage compartment in the carrying case therefore, loss and breakage are virtually eliminated. Cables, a tripod with azimuth and elevation head, and a tripod carrying case accompany each antenna kit. Everything you need for any of your compliance testing. Included Antennas SAS-510-2 290 MHz - 2000 MHz Log Periodic Antenna SAS-530 160 MHz - 500 MHz Dipole Antenna SAS-542 20 MHz - 330 MHz Biconical Antenna SAS-550-1B 10 KHz - 60 MHz Active Monopole Antenna SAS-560 20 Hz - 2 MHz Passive Loop Antenna BCP-510 20 Hz - 1 MHz Broadband Current Probe BCP-511 20 KHz - 100 MHz Broadband Current Probe TSC-542 Transit Storage Case SAC-213 3 Meter N(m) to N(m) cable ADP-202 N(f)to BNC(m) Adapter ATU-510 Wood Tripod AEH-510 Azimuth and Elevation Head TCC-510 Tripod Carrying Case Tripod Case Antenna Case Dimensions: 46%22 X 8%22 Dia. 28%22 X 23%22 X 10%22 Weight (Lb.'s) 18.6 lbs. 35 lbs. Features Total Frequency Range of 20 Hz to 2 GHz Receive and Transmit Individually Calibrated FCC, MIL-STD, VDE and TEMPEST Testing Rugged Construction
Read More
- Configurations
- Resources
- FAQsAI
Base Model
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Serialized Calibration Data
Qty: 1 -
Cord Power
Qty: 1 -
Antenna Log Periodic
Qty: 1 -
Antenna Active Monopole
Qty: 1 -
Loop Emission
Qty: 1 -
Probe Broadband Current 20 Hz - 1 MHz
Qty: 1 -
Probe Broadband Current 100 KHz - 100 MHz
Qty: 1 -
Tripod Magnetic
Qty: 1 -
Azimuth and Elevation Head
Qty: 1 -
Adapter BNC(f) - N(m)
Qty: 1 -
Balun Dipole Biconical
Qty: 1 -
Biconnical Element Folding
Qty: 2 -
Broadband Dipole Element
Qty: 2 -
Antenna Telescoping
Qty: 1 -
Cable BNC(m) - BNC(m) 3 m
Qty: 1 -
Cable N(m) - N(m) 3 m
Qty: 1 -
Carrying Case for Tripod
Qty: 1 -
Case Transit
Qty: 1 -
Key for TSC-542 Carry Case
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
A.H. Systems AK-2G Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the AK-2G Antenna Kit?
A general-purpose antenna kit designed to satisfy a broad range of customer requirements, covering a total frequency range of 20 Hz to 2 GHz.
What components are included in the AK-2G Kit?
The kit includes various antennas such as Log Periodic, Biconical, and Active Monopole antennas, Broadband Current Probes, a transit storage case, cables, a wooden tripod with azimuth and elevation head, and a tripod carrying case.
What are the key features of the AK-2G Antenna Kit?
It features individually calibrated components for accuracy, rugged construction for durability, and is suitable for FCC, MIL-STD, VDE, and TEMPEST testing.
What are the recommended accessories for the AK-2G Kit?
Recommended accessories include a preamplifier and a short 0.5 meter N/N cable for enhanced performance and connectivity options.
