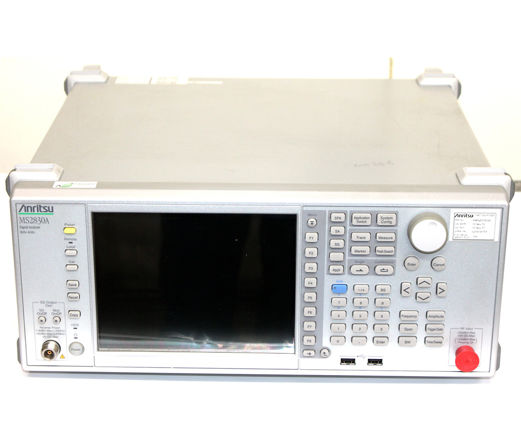

Anritsu MS2830A-041
6 GHz Signal Analyzer, Type N (f)
The Anritsu MS2830A-041 is an RF signal and spectrum analyzer, with an optional built-in vector signal generator addition. It is a compact transmitter and receiver test solution, all in a single box. Among the special features of the MS2830A-041 is its Capture and Playback functionality, which an operator can use to capture signals in the field or laboratory in real-time. This spectrum analyzer supports both analog and digital technologies used in a variety of wireless technologies including Cellular, IoT, and Public Safety Radio.
The Anritsu MS2830A-041 comes with these key features:
- Provides plus/minus 0.3dB (typ.) total level accuracy
- Spectrum analyzer supporting built-in vector signal generator, analog signal generator, audio analyzer and modulation analysis (options)
- Offers modulation analysis, such as LTE/LTE-Advanced (FDD/TDD), WLAN IEEE802.11a/11b/11g/11j/11n/11p/11ac and FM/PM/AM (with optional software)
- Noise Figure, BER and Transmission Characteristics measurement (options)
- Excellent eco-friendly product with low power consumption of 110 VA min
TRS-RenTelco provides the Anritsu MS2830A-041 RF signal and spectrum analyzer for rent or for lease with the added benefit of our 24/7, 365-day customer support. We ship the product with minimal lead time. Our experienced team of metrologists and technicians calibrate the equipment to stringent standards in our 50 GHz ANSI/NCSL Z540-1 compliant laboratory. Request a quote from us today.
- Configurations
- Resources
- FAQsAI
--, 005, 006, 021, 022, 041, 283027A001, 283027A002, MX269028A, MX269911A
See Configuration Details
-
283027A001
WLAN Test Software
-
283027A002
Bluetooth Test Software
-
MX269911A
WLAN IQproducer
-
MX269028A
WLAN (802.11) Measurement Software.
-
005
Analysis Bandwidth Extension to 31.25MHz
-
006
Analysis Bandwidth 10MHz
-
021
6 GHz Vector Signal Generator.
-
022
Low Power Extension for Vector Signal Generator
-
041
6GHz Signal Analyzer.
Standard Rental Accessories*
* Leased or Buy Used product accessories will be confirmed with quote.
-
Cord Power
Qty: 1 -
Mouse Optical
Qty: 1 -
void- USB Drive with Software and Manuals
Qty: 1
*This item has already been added to your cart. Check your cart for quantity and availability.
Anritsu MS2830A-041 Spec Sheet
Content is AI-generated. Verify critical details with manufacturer-provided resources.
What is the frequency range of the Anritsu MS2830A-041 Signal Analyzer?
The MS2830A-041 covers a frequency range from 9 kHz to 6 GHz.
What are the key features of the MS2830A-041?
High-speed, high-performance spectrum analysis, multifunction signal analysis in time and frequency domains, built-in signal generator function, and low phase noise performance.
Can the MS2830A-041 be used for signal generation as well as analysis?
Yes, it has a built-in signal generator function that outputs both continuous wave (CW) and modulated signals.
What additional functions does the MS2830A-041 support?
Vector signal generator, phase noise measurement, noise figure measurement, BER measurement, preamplifier, and more.
How does the MS2830A-041 ensure measurement accuracy?
The device includes advanced calibration technology that supports excellent level accuracy over a wide frequency range, taking into account frequency characteristics, linearity, and attenuator switching errors.
What are the power consumption specifications for the MS2830A-041?
The typical power consumption is 110 VA (nominal).
How does the MS2830A-041 handle dynamic range and sensitivity?
It offers a dynamic range of 168 dB and a displayed average noise level (DANL) of –153 dBm/Hz, ensuring accurate detection of low-level signals.
What analysis bandwidth options are available for the MS2830A-041?
Analysis bandwidths up to 125 MHz are supported, depending on the installed options.
Can the MS2830A-041 save and replay measurement data?
Yes, it features a capture function that saves signal data to internal memory or a hard disk and a replay function for data analysis.
How is the MS2830A-041 environmentally friendly?
It meets Anritsu's "Excellent eco products" standards, indicating a reduced environmental impact through power consumption efficiency and other eco-friendly measures.
